THOR (thor)

Quick Facts

Field Value
Model ID thor
Aliases thor_1_0_base
Family / Backbone Fully vendored THOR runtime (thor_v1_tiny / thor_v1_small / thor_v1_base / thor_v1_large)
Adapter type on-the-fly
Model config keys variant (default: base; choices: tiny, small, base, large)
Training alignment High when thor_stats normalization and default S2 SR setup are preserved

THOR In 30 Seconds

THOR in rs-embed can run either a Sentinel-2 SR 10-band path or a Sentinel-1 VV/VH path, and it works well when you want either a pooled embedding or a grid-like token output while preserving THOR's channel-group structure.

In rs-embed, its most important characteristics are:

Quick Decision Guide

Use input_prep="resize" with the default RS_EMBED_THOR_RESIZE_MODE=native_snap.

This handles small projection mismatches without forcing an immediate 288x288 resize.

Use input_prep="tile".

This avoids token explosion and keeps stitched grid geometry stable.

Use RS_EMBED_THOR_GROUP_MERGE=concat.

This keeps aligned group maps separate in the channel dimension instead of collapsing them into one shared grid.

What Usually Goes Wrong

Most THOR confusion comes from three places: changing patch_size without checking that image_size still divides cleanly, assuming native_snap should also apply inside tiled inference, and interpreting concat grids as directly comparable to mean grids. Treat those as different representation settings, not just cosmetic options.

Input Contract

Provider-only backend (gee / auto). TemporalSpec is normalized to a range via the shared helper; TemporalSpec.range(...) is recommended for reproducibility — the temporal window controls compositing rather than locking to one acquisition. Side inputs: none.

Modality Collection Bands (order) input_chw Default normalization Extra fetch fields
s2 (default) COPERNICUS/S2_SR_HARMONIZED B2,B3,B4,B5,B6,B7,B8,B8A,B11,B12 (10-band) CHW, C=10, raw SR 0..10000 thor_stats z-score after /10000 scale_m=10, cloudy_pct=30, composite="median", fill_value=0.0
s1 COPERNICUS/S1_GRD_FLOAT VV, VH (2-band) CHW, C=2 in VV,VH, raw VV/VH shared S1 log1p + p99 scaling use_float_linear=True, s1_require_iw=True, s1_relax_iw_on_empty=True

Before normalization, the adapter clips NaN/Inf values and clamps raw SR to 0..10000. Set RS_EMBED_THOR_NORMALIZE=none to bypass the default normalization on either modality.

Preprocessing Pipeline

flowchart LR
    INPUT["Provider fetch\n/ input_chw"] --> MOD{Modality}
    MOD -- "s2 (default)" --> S2["S2 10-band"]
    MOD -- s1 --> S1["S1 VV/VH"]
    S2 --> PIPE["Geometry policy → Normalize\n→ Optional resize to 288×288"]
    S1 --> PIPE
    PIPE --> FWD["THOR backbone\n→ tokens [N,D]"]
    FWD --> POOL["pooled: mean/max"]
    FWD --> GRID["grid: group-aware layout"]

Architecture Concept

flowchart LR
    S2["S2 10-band\n/ S1 VV/VH"] --> GRP["Channel groups\n→ per-group patch embed"]
    GRP --> TF["Transformer"]
    TF --> GM{group_merge}
    GM -- mean --> MEAN["Averaged grid (D,H,W)"]
    GM -- concat --> CAT["Per-group channels (D×G,H,W)"]

Environment Variables / Tuning Knobs

Env var Default Effect
RS_EMBED_THOR_MODEL_KEY thor_v1_base THOR backbone key for the vendored runtime
RS_EMBED_THOR_CKPT unset Local checkpoint path override
RS_EMBED_THOR_PRETRAINED 1 Use pretrained weights (HF default path)
RS_EMBED_THOR_IMG 288 Resize target image size
RS_EMBED_THOR_RESIZE_MODE native_snap native_snap keeps bounded snapped native sides; fixed always resizes to RS_EMBED_THOR_IMG
RS_EMBED_THOR_NORMALIZE thor_stats S2: thor_stats, unit_scale, or none; S1: thor_stats (shared S1 log normalize) or none
RS_EMBED_THOR_GROUP_MERGE mean THOR group-grid aggregation: mean, sum, concat
RS_EMBED_THOR_PATCH_SIZE 8 THOR flexi patch size parameter
RS_EMBED_THOR_SHAPE_ADJUST crop Side native_snap snaps from for near-square inputs: crop (short side) or pad (long side)
RS_EMBED_THOR_SHAPE_TOL_PX 8 Maximum abs(H-W) tolerated before native_snap falls back to fixed resize
RS_EMBED_THOR_MAX_NATIVE_SIDE 384 Snapped native side above which THOR falls back to fixed resize, if that lowers the token count
RS_EMBED_THOR_MAX_NATIVE_TOKENS 3000 Patch-token count above which THOR falls back to fixed resize, if that lowers the count
RS_EMBED_THOR_FETCH_WORKERS 8 Provider prefetch workers for batch APIs

patch_size changes token density, not embedding dimension. Smaller patch sizes mean denser token grids and more compute.

Keep RS_EMBED_THOR_IMG divisible by 2 * RS_EMBED_THOR_PATCH_SIZE for the current S2 10m/20m path. If you are unsure, keep RS_EMBED_THOR_IMG=288 and change only patch_size to one of the known-compatible values such as 4, 6, 8, 12, 16, or 18.

input_prep="resize" means one whole input patch goes through THOR once; in that path the adapter may use native_snap.

input_prep="tile" means the API slices a larger input into multiple tiles first; inside that tiled path THOR intentionally uses fixed per-tile resize behavior so the stitched output still maps cleanly back to the tile layout. An input that fits one tile is not tiled: it is passed whole, exactly as in resize mode.

native_snap is intentionally bounded. An input that is not close to square always falls back to fixed resize. Past RS_EMBED_THOR_MAX_NATIVE_SIDE or RS_EMBED_THOR_MAX_NATIVE_TOKENS, THOR falls back only when that lowers the token count (see below), so an input below RS_EMBED_THOR_IMG can stay native past either limit.

For the current default S2 10m/20m path with patch_size=8, side=384 corresponds to about 2880 patch tokens, which is why 384 is the default ceiling.

native_snap snaps to the nearest valid side (a multiple of 16 px at patch_size=8 and 10 m; a tie pads up), starting from the short side under shape_adjust=crop or the long side under pad, and center-fits the input to it, padding by replicating edge pixels. A 1 px fetch overshoot (289 px for a 2880 m ROI) therefore crops back to 288 px, and no zero fill reaches the model. When the snapped side would break one of the limits above and the valid side one unit below meets them, that side is used instead if the breach would resample the input to RS_EMBED_THOR_IMG, or if the snap was a tie that padded up (e.g. 393–407 px run natively at 384 px instead of a 288 px resize).

meta["shape_prep"]["input_window"] records where the input lies in the array fed to THOR, and the ROI crop is mapped through it. Grid output drops the ROI's context margin and any whole tokens of padding; shape_prep.model_grid_hw and shape_prep.grid_crop_box record the uncropped grid and the kept token box. Pooled output pools THOR's tokens inside the ROI window for every ROI (pooling="roi_token_<mean|max>" for an ROI sub-window), so pooled vectors have the same length, scale and group weighting whatever the ROI's shape.

Each distinct native side has its own ground cover, and THOR builds one model per ground cover (up to 8 stay cached). THOR exports run point by point in input order, so ROIs that snap to many different sides rebuild the model often (about 0.6 s each for base with cached weights). Use ROIs of one size, e.g. a fixed PointBuffer radius, to keep a single model.

Past either limit, THOR falls back to a fixed resize to RS_EMBED_THOR_IMG, but only when that resize actually lowers the token count, i.e. when RS_EMBED_THOR_IMG is smaller than the snapped side. The token count is set by ground cover / (patch_size × GSD), so a resize to a larger side would add tokens and misstate the geometry. In that case THOR runs the input natively, emits a UserWarning and records meta["native_limit_exceeded"]. With patch_size=4, for example, a 256 px input needs 5120 tokens and runs natively (the 288 px fallback would need 6480), while a 380 px input falls back to 288 px. Raise RS_EMBED_THOR_MAX_NATIVE_TOKENS to keep larger inputs native. Under input_prep="resize", switching to "tile" also keeps inputs larger than one tile at native spacing.

Fixed resize changes the pixel spacing THOR assumes

THOR reads each band's GSD (10 m / 20 m) from its channel config and is told a ground cover of scale_m × RS_EMBED_THOR_IMG. Any fixed resize of an input whose side is not RS_EMBED_THOR_IMG therefore runs the model at the wrong scale. For example, a 256 px (2560 m) input stretched to 288 px is treated as 2880 m at 10 m, but the real spacing is 8.89 m, and patch-size embeddings and output grid cells are off by the same factor. THOR emits a UserWarning when this happens and records the real spacing in meta["effective_gsd_m"] (per axis, (y, x)) and meta["gsd_mismatch"]. native_snap never resamples, so its spacing stays exact.

Model-specific Settings

variant selects the THOR backbone size. In rs-embed, pass it as variant="tiny" | "small" | "base" | "large".

Variant Vendored model key Parameters Output channels Transformer blocks Attention heads Notes
tiny thor_v1_tiny 7.6M 192 12 3 Smallest and fastest option.
small thor_v1_small 25.8M 384 12 6 Middle ground when tiny is too limited.
base thor_v1_base 94.1M 768 12 12 Current default.
large thor_v1_large 314.4M 1024 24 16 Highest capacity and heaviest runtime.

How To Read Output Channels

Output channels here means the default THOR embedding width for pooled output and for grid output when group aggregation keeps one shared channel space, such as RS_EMBED_THOR_GROUP_MERGE=mean or sum.

If you use RS_EMBED_THOR_GROUP_MERGE=concat, the final grid channel count becomes embedding_width x number_of_THOR_groups, so it is larger than the values listed above.

Example:

from rs_embed import PointBuffer, TemporalSpec, OutputSpec, get_embedding

emb = get_embedding(
    "thor",
    spatial=PointBuffer(lon=121.5, lat=31.2, buffer_m=2048),
    temporal=TemporalSpec.range("2022-06-01", "2022-09-01"),
    output=OutputSpec.pooled(),
    backend="gee",
    variant="large",
)

Output Semantics

OutputSpec.pooled()

OutputSpec.pooled() pools the token sequence through _pool_thor_tokens(...). When the expected THOR patch-token count is available, the adapter uses it to avoid pooling non-patch tokens incorrectly. Metadata records the pooling mode and cls_removed.

OutputSpec.grid()

OutputSpec.grid() first tries to build a THOR group-aware grid with grid_kind="thor_group_grid" from the channel groups. If that fails, it falls back to a generic ViT-style patch-token reshape with grid_kind="patch_tokens". Some token layouts still cannot be reshaped into a grid, in which case the adapter raises a clear error and suggests using pooled output.

The group-aware path exists because native THOR emits one token sequence plus layout metadata, not one uniform spatial tensor. rs-embed uses that metadata to reconstruct per-group feature maps, upsamples lower-resolution groups onto the densest group grid, and then applies group_merge.

Use this unless you have a specific reason not to.

It averages aligned group maps into one shared grid, keeps output dimensionality stable, and is the easiest setting to compare across runs.

Use this when you want one shared grid but prefer additive responses over averaging.

It is more sensitive to feature scale than mean.

Use this only when downstream code expects a wider channel dimension and you explicitly want to preserve group-specific information instead of collapsing it.

Examples

Minimal example:

from rs_embed import get_embedding, PointBuffer, TemporalSpec, OutputSpec

emb = get_embedding(
    "thor",
    spatial=PointBuffer(lon=121.5, lat=31.2, buffer_m=2048),
    temporal=TemporalSpec.range("2022-06-01", "2022-09-01"),
    output=OutputSpec.pooled(),
    backend="gee",
)

from rs_embed import get_embedding, PointBuffer, TemporalSpec, OutputSpec

emb = get_embedding(
    "thor",
    spatial=PointBuffer(lon=121.5, lat=31.2, buffer_m=2048),
    temporal=TemporalSpec.range("2022-06-01", "2022-09-01"),
    modality="s1",
    output=OutputSpec.pooled(),
    backend="gee",
)

This switches THOR onto the default VV,VH Sentinel-1 path. If you need a different provider collection, pass an explicit SensorSpec(..., modality="s1"). thor modality

export RS_EMBED_THOR_RESIZE_MODE=native_snap
export RS_EMBED_THOR_NORMALIZE=thor_stats
export RS_EMBED_THOR_GROUP_MERGE=mean
export RS_EMBED_THOR_IMG=288
export RS_EMBED_THOR_PATCH_SIZE=8

export RS_EMBED_THOR_RESIZE_MODE=native_snap
export RS_EMBED_THOR_SHAPE_ADJUST=crop
export RS_EMBED_THOR_SHAPE_TOL_PX=8
export RS_EMBED_THOR_MAX_NATIVE_SIDE=384
export RS_EMBED_THOR_MAX_NATIVE_TOKENS=3000

This lets THOR keep a snapped native side for near-square inputs such as 289x288 or 300x300, but still falls back to fixed resize for larger or more expensive inputs when that resize lowers the token count.

export RS_EMBED_THOR_IMG=288
export RS_EMBED_THOR_PATCH_SIZE=4

Use a smaller patch_size when spatial detail matters more than runtime or memory. At patch_size=4, inputs above about 196 px exceed the default 3000-token limit: those under 288 px run natively with a warning, larger ones fall back to a 288 px resize. Raise RS_EMBED_THOR_MAX_NATIVE_TOKENS (for example to 12000) to keep them all native.

export RS_EMBED_THOR_IMG=288
export RS_EMBED_THOR_PATCH_SIZE=12

Use a larger patch_size when you want a coarser token grid with lower compute cost.

export RS_EMBED_THOR_IMG=280
export RS_EMBED_THOR_PATCH_SIZE=10

When patch_size no longer divides cleanly, change RS_EMBED_THOR_IMG together with it.

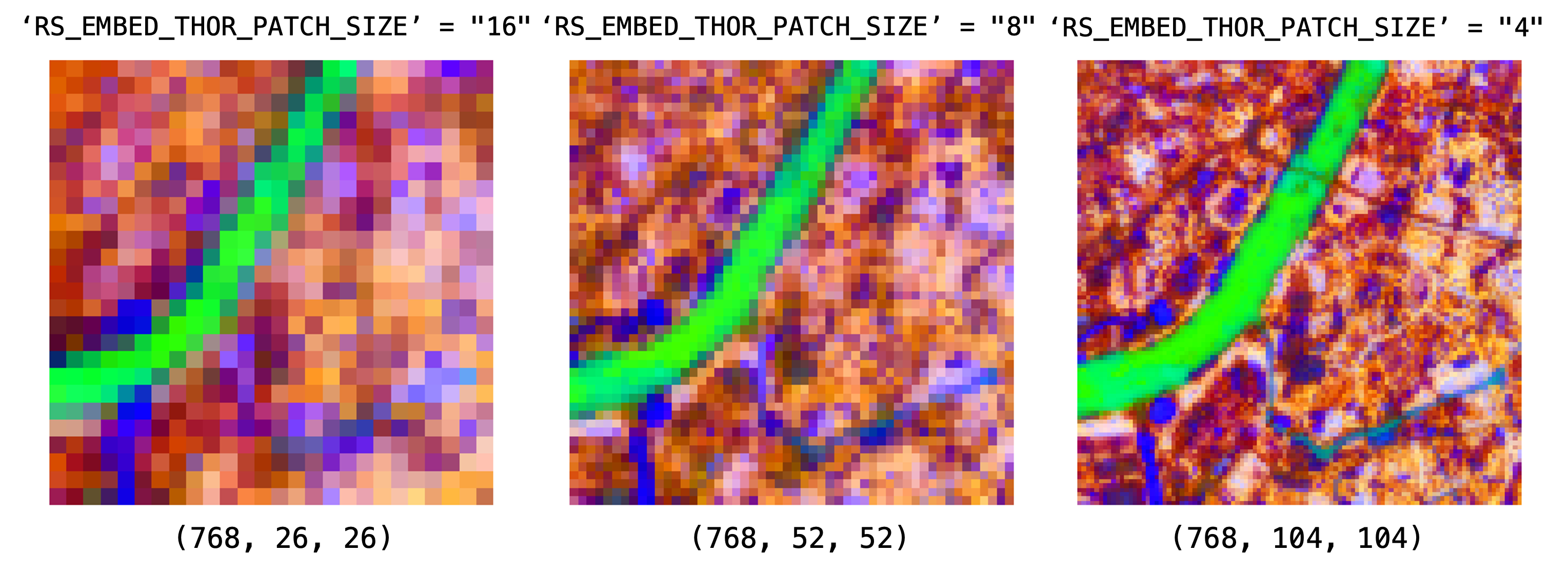

patch size

from rs_embed import get_embedding, PointBuffer, TemporalSpec, OutputSpec, InputPrepSpec

emb = get_embedding(
    "thor",
    spatial=PointBuffer(lon=121.5, lat=31.2, buffer_m=4096),
    temporal=TemporalSpec.range("2022-06-01", "2022-09-01"),
    output=OutputSpec.grid(pooling="mean"),
    backend="gee",
    input_prep=InputPrepSpec.tile(tile_size=288),
)

In this mode the large input is split into 288x288 tiles. Each tile uses THOR's fixed per-tile resize path rather than native_snap, so stitched grid outputs stay aligned with the tile layout.

from rs_embed import get_embedding, PointBuffer, TemporalSpec, OutputSpec

emb = get_embedding(
    "thor",
    spatial=PointBuffer(lon=121.5, lat=31.2, buffer_m=2048),
    temporal=TemporalSpec.range("2022-06-01", "2022-09-01"),
    output=OutputSpec.grid(pooling="mean"),
    backend="gee",
    variant="small",
)

Use variant only for backbone size selection. Other THOR runtime knobs such as image size, normalization, patch size, and checkpoint override still use the environment-variable path above.

Reference

  • Changing patch_size without updating image_size to divide cleanly is the most common misconfiguration.
  • Inside tiled inference, THOR uses fixed per-tile resize instead of native_snap. This only applies to inputs that are actually split into tiles: an input that fits one tile is passed to THOR whole, as a plain call, so native_snap applies to it. The default tile size follows RS_EMBED_THOR_IMG; if you set tile_size explicitly, keep it equal to RS_EMBED_THOR_IMG and keep pad_edges=True, or each tile is resampled and THOR runs at the wrong pixel spacing.
  • A fixed resize that changes the pixel spacing emits a UserWarning; check meta["gsd_mismatch"] and meta["effective_gsd_m"] on exported embeddings. For tiled inputs, the shared tiler may also have shrunk an axis by up to tile_snap_frac (10% by default) to avoid near-duplicate edge tiles; that is recorded separately in meta["input_prep"]["snapped_from_hw"].
  • group_merge=concat and group_merge=mean produce different channel dimensions; do not compare them directly.
  • Grid construction can fail if the token layout is not square and group parsing cannot resolve it — fall back to pooled to isolate the issue.
